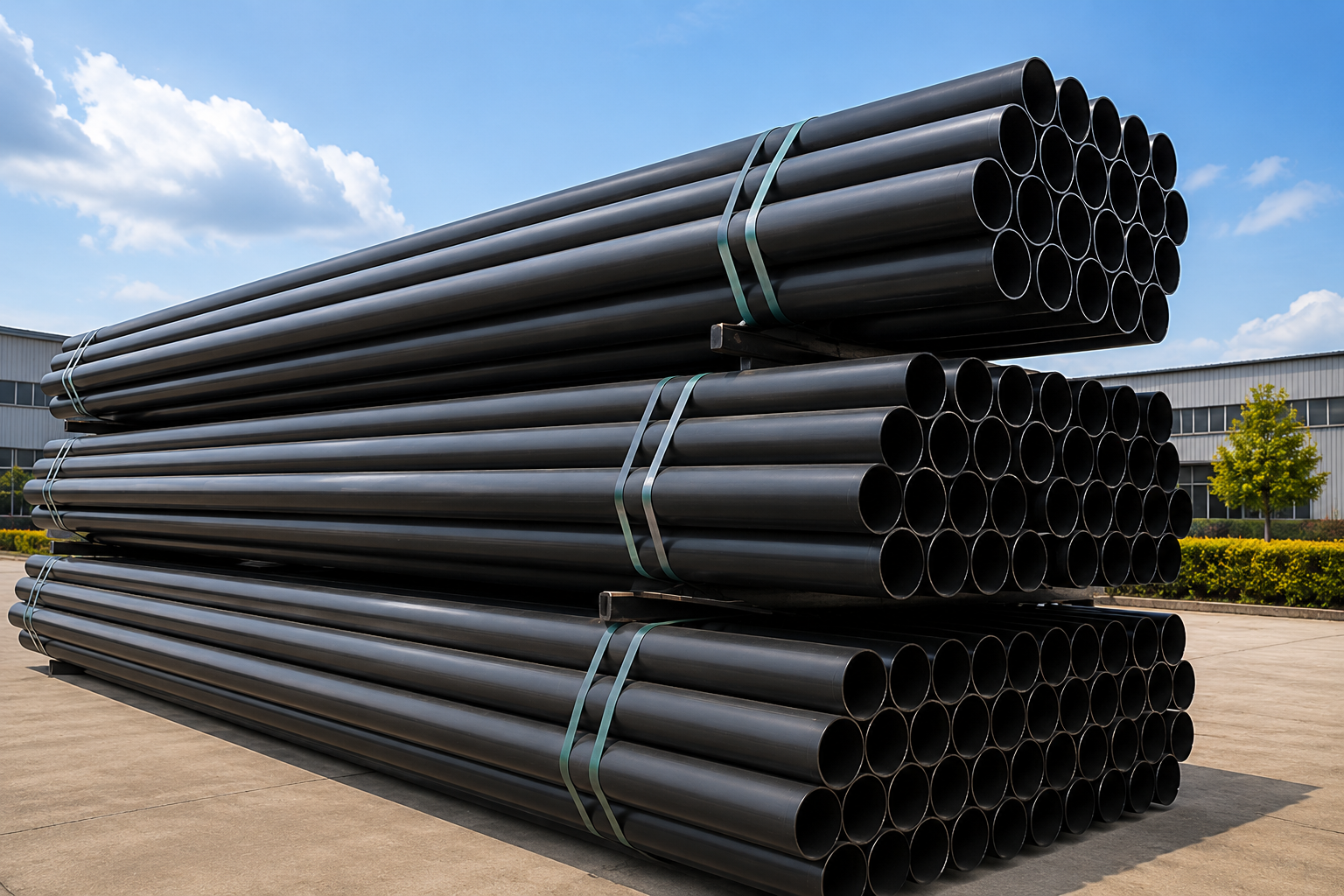

HDPE Pipes
HDPE Pipes
We are considered a prominent HDPE Pipes Manufacturer, Exporter and Supplier from India. Our HDPE Pipes are manufactured using High Density Polyethylene that ensures their flawless performance and long functional life. These pipes are quite useful for carrying potable water, slurries, hazardous wastes, wastewater, cables, chemicals and compressed gases as well as oils. Moreover, these are highly demanded for landfill gas extraction and cable ducting.
High Density Polyethylene (HDPE) Pipes for Water Supply & Industrial Applications
HIMALYAN, is a trusted leader in manufacturing and supplying high-performance Polyethylene (PE) pipes, fittings, and accessories. Backed by years of industry expertise and driven by technological innovation, we deliver robust piping solutions engineered to conquer the most challenging terrain and complex project requirements.
At HIMALYAN Pipes, quality isn’t just a corporate buzzword—it is the foundation of our entire manufacturing philosophy. Our state-of-the-art facility utilizes modern machinery, advanced testing equipment, and precision instruments. Every production run is closely supervised by an expert engineering team, ensuring that every meter of pipe we deliver is flawless, reliable, and built to last.
The HIMALYAN Advantage: Why Choose Our PE Pipes?
Pipes made from Polyethylene (PE) are the modern, cost-effective answer to traditional, rigid piping vulnerabilities. Whether you are dealing with corrosive soils, seismic activity, or intricate routing, HIMALYAN PE pipes offer unmatched adaptability.
- 100% Safe & Non-Toxic: Our pipes are completely inert, meaning they do not impart any odour, taste, or toxicity to the fluid being transported. They are perfectly safe for potable drinking water supply.
- Heavy-Duty Durability: Engineered to be strong, extremely tough, and structurally resilient, these pipes handle high-stress environments without cracking.
- Corrosion & Chemical Resistance: Naturally immune to rust, rot, pitting, and chemical degradation, making them ideal for aggressive soils or industrial effluent.
- Superior Flexibility: Their flexible nature allows for seamless navigation around obstacles, drastically reducing the number of joints and fittings needed.
- Effortless Installation & Mobility: Lightweight, easily transportable, and simple to join, significantly lowering your logistical and labour costs.
- Unmatched Versatility: Rigorously tested and proven effective for underground, above-ground, surface, underwater, and even floating pipe applications.
Versatile Applications across Industries
HIMALYAN PE pipes serve as the reliable backbone for critical fluid transportation networks across multiple sectors:
1. Agriculture & Irrigation
- Smart Irrigation: Ideal for micro-irrigation, drip systems, and overhead sprinkler networks.
- Water Transport: Seamless conveyance of water from natural sources or tube wells to agricultural fields.
- Submersible Pumps: Heavy-duty column pipes tailored specifically for deep-well submersible pumps.
2. Municipal & Civic Infrastructure
- Potable Water Networks: Safe distribution of clean drinking water in metropolitan and municipal areas.
- Lift & Gravity Systems: Efficient handling of high-pressure lift irrigation and gravity-fed water supplies.
- Sewerage & Waste Management: Highly reliable for sewerage pumping and safe effluent disposal systems.
3. Industrial & Special Applications
- Mining & Dredging: Capable of handling abrasive slurries, underwater setups, and floating pipelines.
- Cable Ducting: Excellent protection for telecommunication and power cables.
- Environmental Engineering: Used extensively in Landfill Gas (LFG) extraction systems.
Advantages
Are 6 to 8 times lighter than GI & CI Pipes.
Easy to carry, Which offers low cost in transportation and handling cost.
Non-corrosive.
Non-corrosive.
Transfer of heat is much lower.
UV Resistance quality.
Good ESCR property.
Good Elasticity & Strength property.
Chemical Resistances.
Available in suitable coils of 50 meter to 200 meter as well as in straight lengths of 5/6 Meter
Uses of HDPE Pipes for
Technical Specifications & Features
We strictly adhere to predefined company norms and national quality benchmarks. HIMALYAN pipes are manufactured using Polyethylene Granules (PE63, PE80, and PE100) under rigid quality control systems.
Key Specifications:
- Standard Compliance: Fully conforms to IS 4984:2016 (Bureau of Indian Standards) and other major global quality parameters.
- Size Range: Comprehensive diameter options ranging from 16 mm to 450 mm to suit micro-scale to macro-scale projects.
- Pressure Ratings: Available across a wide pressure spectrum, from 0 kg/cm² up to 20.0 kg/cm².
- Visual Identification: Manufactured in sleek Black with three equispaced, continuous, longitudinal Blue stripes (minimum 3mm width) for easy identification of water supply lines.
Size & Pressure Of HDPE Pipes
- Drinking Water Supplies.
- Tele20mm to 315mm PN 2.5, PN 4, PN 6, PN 10 (PE63 Material Grade)
- Drinking Water Supplies.
- Tele20mm to 315mm PN 2.5, PN 4, PN 6, PN 8, PN 10 (PE80 Material Grade)
technical dimensions
Technical Specification of HDPE Pipe
| Category | Specification | STANDARD | Unit | Value |
|---|---|---|---|---|
| Mechanical Specifications | Intensity | ISO 1183 | gr/cm3 | 0,95 |
| Melting flow rate (MFR) 190/5 | T 003 | gr/10 min | 0,2 – 0,4 | |
| Melting flow rate (MFR) 190/5 | T 005 | gr/10 min | 0,4 – 0,7 | |
| Melting flow rate (MFR) 190/5 | T 010 | gr/10 min | 0,7 – 1,3 | |
| Tensile stress (akma) | ISO 527 | Kg/cm2 | 255 | |
| Elongation (creep) | ISO 527 | % | 9 | |
| Elongation (break) | ISO 527 | % | >600 | |
| Thermal Specifications | Softening Temperature | ISO 306 | °C | 77 |
| Deflection Temperature | ISO 75 | °C | 75 | |
| Coefficient of Thermal Expansion | DIN 53732 | 1 / °C | 0,00018 | |
| Thermal Conductivity (20 oC) | DIN 52612 | W / m°C | 0.4 | |
| Flamibility | DIN 4102 | -- | B2 | |
| Electrical Specifications | Specific Volume Resistance | VDE 0303 | Ohm.cm | >1016 |
| Özgül Yüzey Direnci | VDE 0303 | Ohm | >1013 | |
| Dielectric coefficient | VDE 0303 | kV / mm | 70 |
- Polyethylene 1000 Pipes for stability (creep) pressure account;
- Pk - critical collapse pressure bar
- Ec - Modulus of Elasticity
- U - Number of cross thermoplastics
- S - Thickness (mm)
- rm - The average radius tube (mm)
Raw Material of Polyethylene Pipe
- Low density polyethylene raw material (LDPE)
- Medium density polyethylene raw materials (MDPE)
- High density polyethylene raw materials (HDPE)
- HDPE Pipe is resistant to weather conditions
- HDPE Pipe High resistance to tearing and pressure
- HDPE Pipe Despite high resistance to stress cracking
- HDPE Polyethylene Pipe -30 And -60 degree to strength
- High Density Polyethylene Pipe have corrosion resistance
- Easy and reliable assembly of HDPE Pipe
- In HDPE Pipes Lower level compared to metal pipe friction losses
- HDPE Pipes, Reduced flow noise
- Electrical full insulation, it is a good thermal insulation
- HDPE Pipes are non toxic.
- HDPE Pipe is suitable for radioactive waste.
Ready for Next Challenge?
No requirement is too complex for our team. Whether customer need custom lengths, specific pressure thresholds, or expert guidance on a large-scale municipal infrastructure project, HIMALYAN Pipes is ready to deliver.
